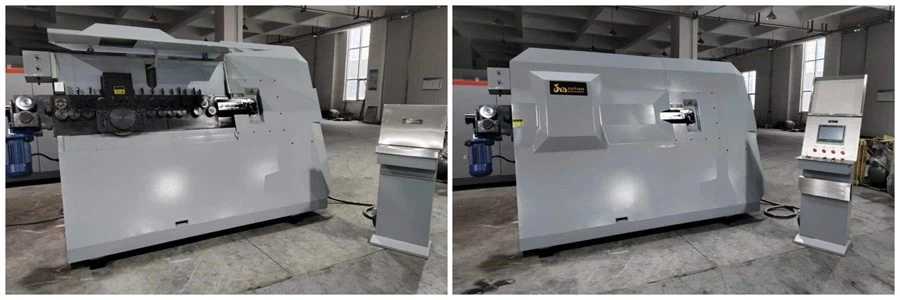

Automatic Stirrup Bender for Coiled Bar
Model:YT-13
Rated Power:44.7KW
Single Wire:6-13MM
Double Wire:6-10MM
Straightening system:S ARC STRAIGHT
Product Introduction
Product Introduction
1. The first wireless remote control in China, which is convenient and safe to operate; It is equipped with automatic feeding and wire feeding mechanism to save time and labor for steel bar feeding and threading.
2. Servo control bending and wire feeding to ensure the accuracy of bending angle and size of finished stirrup, which can work continuously for 24 hours.
3. Interactive operation of man-machine interface, which can store various shapes and graphics, which can be used immediately.
4. The core electronic devices (encoder and sensor) are imported from Germany with excellent performance, stability and reliability, It has good anti-interference ability, can be used normally in different environments, and the intelligent ultra long-life parts are guaranteed Period (5 years warrant)
Product Parameter
Automatic Stirrup Bender for Coiled Bar YT-13 | |||
Remote Function | 4 way control | Straightening System | S ARC STRAIGHT |
Single Wire | 6-13MM | Production Capacity | 1100PCS/Hour(single) |
Double Wire | 6-10MM | Production Capacity | 2200PCS/Hour(double) |
Bending Angle | 1-180° | Bending Head Move | Up and down |
Max Traction Speed | 170M/MIN | Bending Direction | Bi-direction |
Length Accuracy | ±1MM | Dimension | 3400*1280*2090MM |
Angle Accuracy | ±1° | Rated Power | 44.7KW |
Main Machine Weight | 2000KG | ||
Product Details
1. Equipped with italy servo motor and system, more reliable and durable

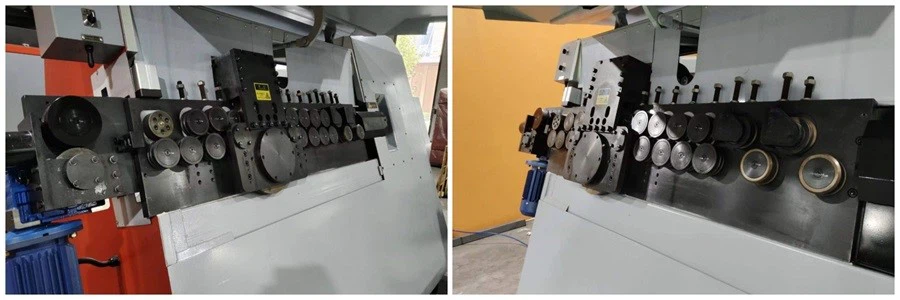

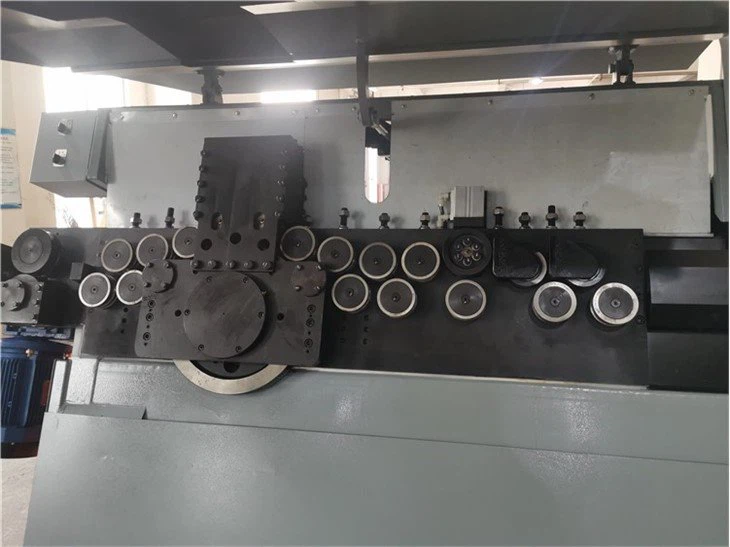

2. S ARC straightening system(patent no:ZL201610600651. 3), make the shape much perfect
3. Feeding part equipped with motor and remote function, its easy to feeding the steel bar. (pls see the pictures as following)
FAQ
1. What certificate do you have?
All our machine were had approved ISO9001 certificate and CE certificate, we would like to do best quality for every customer.
2. What's the warranty time for cnc stirrup bender?
We can provide 1 year warranty for cnc stirrup bender
3. What spare parts should i buy along with cnc stirrup bender?
We will provide some blades and wheels along with machine, no need to buy spare parts.
4. What shape can make?
Cnc stirrup bender can make more than 500 shapes, such as circle, triangle, square shape etc. . .

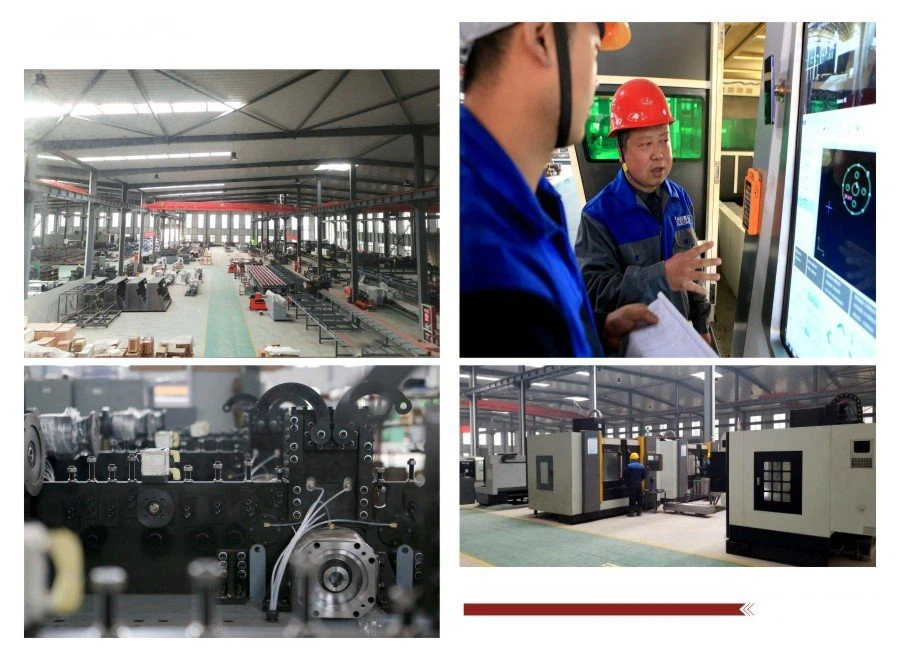

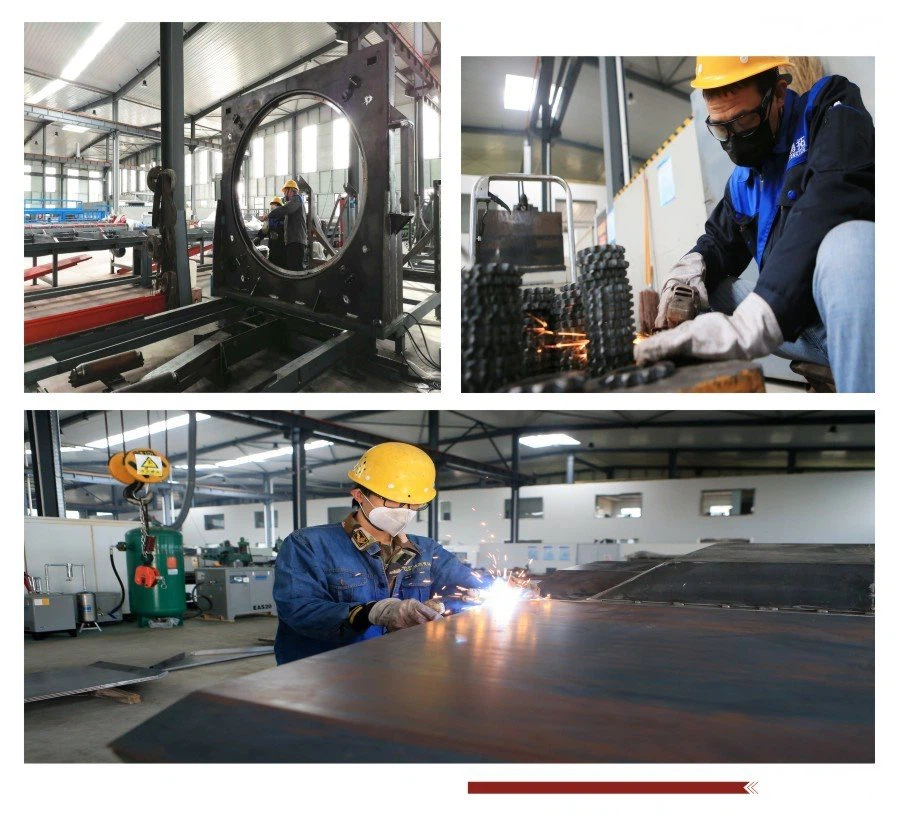

Factory Show
