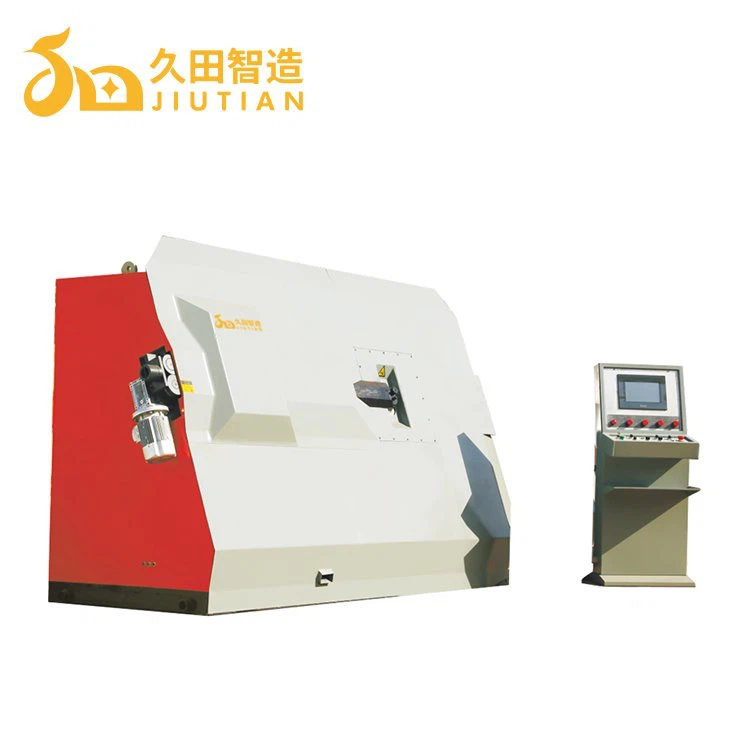

CNC Steel Bar Stirrup Bender
Model:YT-12
Rated Power:29.5KW
Single Wire:6-12MM
Double Wire:6-10MM
Straightening system:S ARC STRAIGHT
Product Introduction
Product Introduction
1. Curved steel bar straightening mechanism (invention patent: an arc wire feeding automatic balance hoop bending machine, patent No.: zl201610600651. 3), which can prevent the axial torsion of deformed steel bar; Double line feeding and single line independent straightening can realize independent straightening without shutdown.
2. Intelligent fault identification, convenient fault detection and maintenance; Centralized oil supply lubrication is realized at the lubrication parts to prolong the service life of the equipment.
3. The cutting support block and cutting arm are made of special materials and have good fatigue resistance after professional quenching treatment Fatigue resistance, wear resistance, and effectively improve the service life. Smart made ultra long-life parts promise ultra long warranty
Product Parameter
Cnc Steel Bar Stirrup Bender YT-12 | |||
Remote Function | 3 way control | Straightening System | S ARC STRAIGHT |
Single Wire | 6-12MM | Production Capacity | 750PCS/Hour(single) |
Double Wire | 6-10MM | Production Capacity | 1500PCS/Hour(double) |
Bending Angle | 1-180° | Bending Head Move | Up and down |
Max Traction Speed | 130M/MIN | Bending Direction | Bi-direction |
Length Accuracy | ±1MM | Dimension | 3000*1280*2000MM |
Angle Accuracy | ±1° | Rated Power | 29.5KW |
Main Machine Weight | 1700KG | ||
Product Details

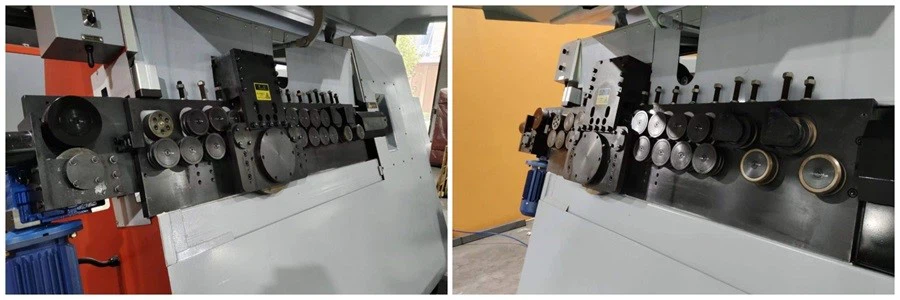

1. S ARC straightening system(patent no:ZL201610600651. 3), make the shape much perfect

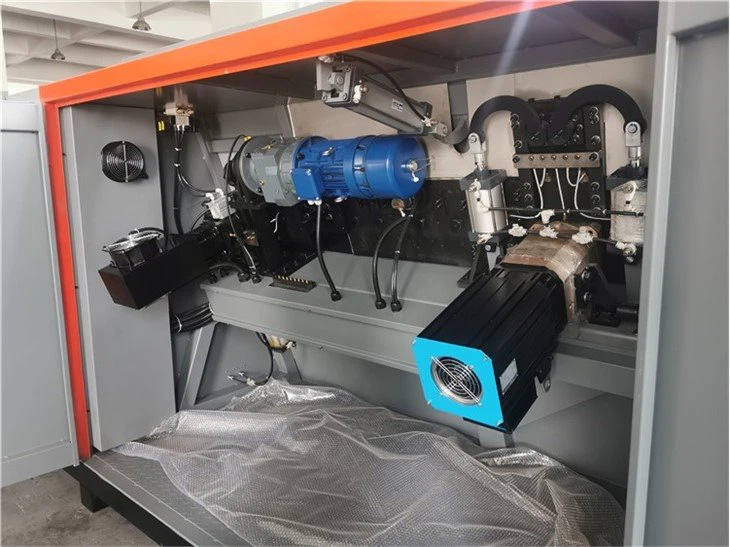

2. Cutting motor also use servo motor to instead of brake motor, no need to worry the damage of brake, long time working life

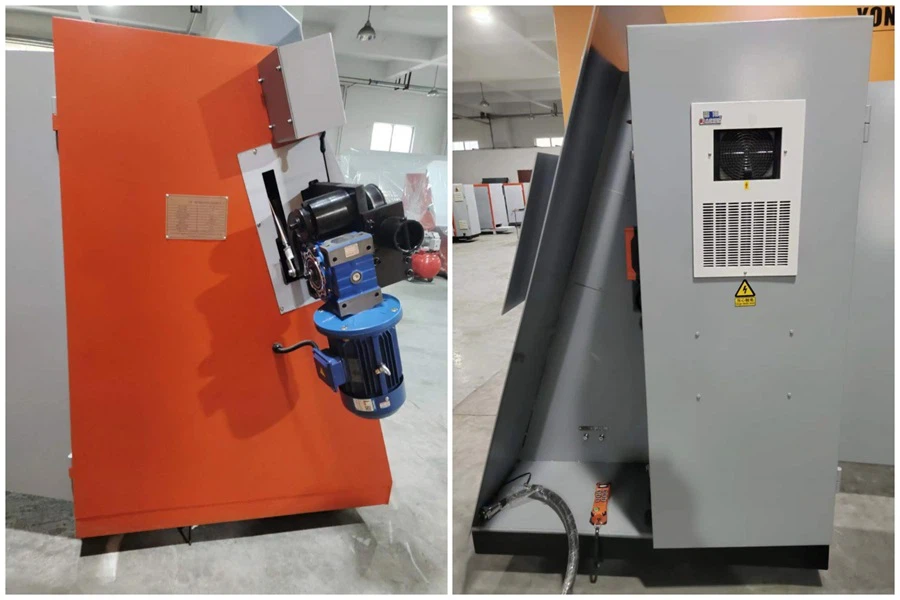

3. Cutting support block and cutting arm are made of special materials, with professional heating treatment, improved its service life, we give 10years warranty (pls see the pictures as following)
FAQ
1. Is your company manufacture or trading company ?
We are manufacturer and we have about 12 years experience in steel bar processing equipment field.
2. What certificate do you have?
All our machine were had approved ISO9001 certificate and CE certificate, we would like to do best quality for every customer.
3. What's the delivery time of the machine?
20 days for cnc stirrup bender.
4. What's kind of package you will provide?
Regarding cnc stirrup bender, We will wrapping film on the machine, as machine is too big, but don't worry, its won't break.

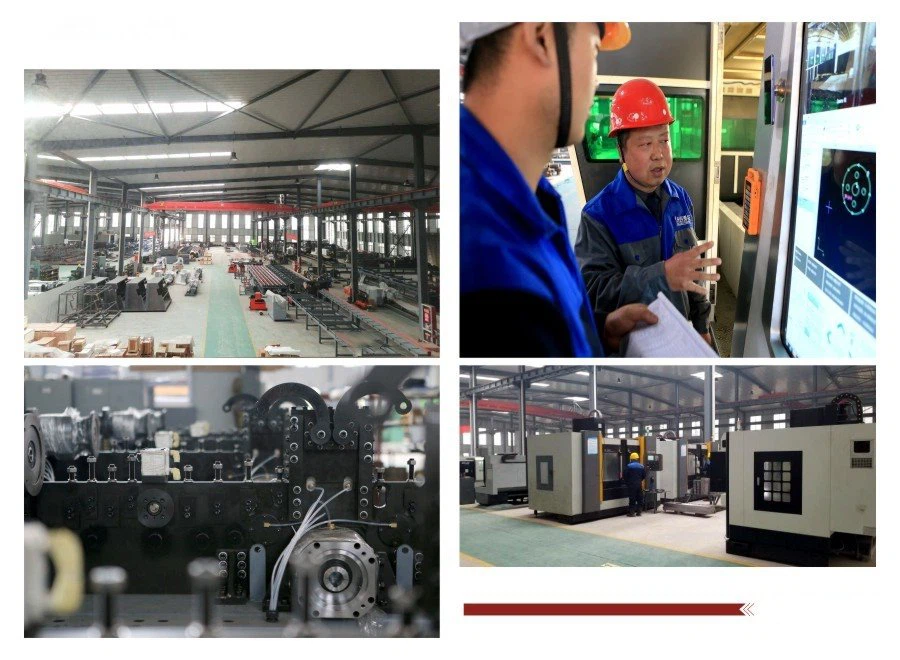

Factory Show
