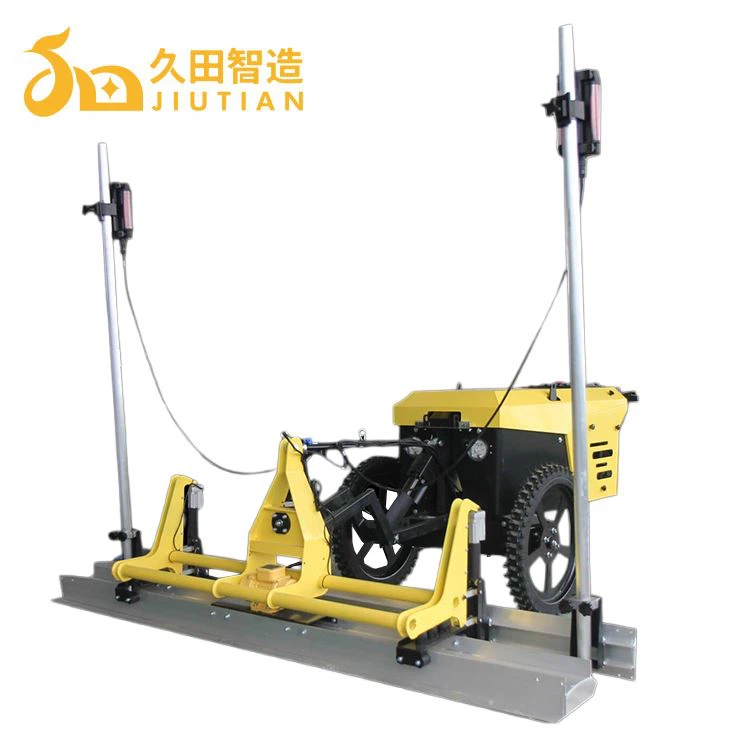

Screed Machine Concrete
Model:JT-2500
Engine Power:5.5HP
Flattening Head Width:2500MM
Walking speed:0-6KM/H
Length error:±8MM
Product Introduction
Advantage of laser concrete screed machine
1.Crab-type steering mode realizes 360-degree machine rotation.
2.Automatic head slow down function and quick leveling function.
3.Leica and Trimble laser system, with high working precision and reeliablity.
4.Improve the quality of the terrace and increase profits.
|
Laser Concrete Screed Machine JT-2500 |
|
|
Flattening Head Width |
2500MM |
|
Paving Thickness |
30-300MM |
|
Walking Speed |
0-6KM/H |
|
Walking Drive |
Servo Motor Drive |
|
Exciting Force |
1000N |
|
Engine |
Honda GP200 |
|
Power |
5.5HP |
|
Weight |
295KG |
|
Dimension |
2750*2950*2050MM |
|
Laser System |
Two Side Slope Remote Control Transmitter |

laser concrete screed machine

Improve construction efficiency:
laser screed machine precision construction, greatly providing surface paving speed and efficiency
(1) Ground Flatness: ≤±4mm/2m
(2) The ground elevation error: diameter
range≤±7mm/100m
(3) The maximum construction radius ≤200m
(4) construction area per hour: 200m2/h~350m2/h


Application
Through accurate calculation and control, the waste of materials and labor costs of workers can be reduced, and the construction efficiency can be improved, so as to achieve the purpose of reducing production costs.
